Quick Disconnect Assembly


Quick Disconnect Assembly Description

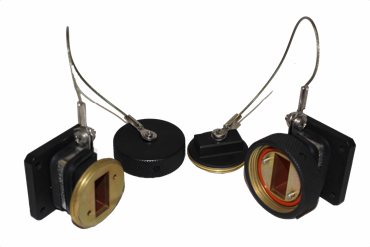

  • All QD assy come standard with male/female connections
  • 1.70 - 40.00.00 GHz Performance Frequency
  • 1.05 Typical Max VSWR (VSWR varies with design)
  • All QD assemblies include dust caps, clamps, and lanyards
  • Aluminum (6061) or copper (OFHC) material available
  • Numerous Flange Configurations available
  • Standard finish is corrosion treatment & painted flat black


All AMC components are produced with the highest quality available. We insure our quality through a ISO9001 / AS9100 certified quality system.


WAVEGUIDE FLANGES:

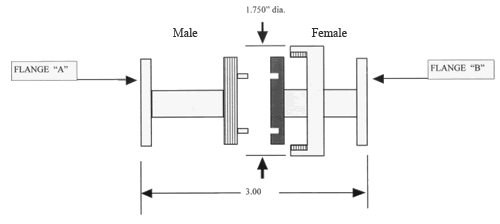

A = AMC QUICK DISCONNECT (MALE) PATENT PROTECTED
B = AMC QUICK DISCONNECT (FEMALE) PATENT PROTECTED
C = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL CLEAR HOLES)
D = MODIFIED CPR STYLE - GROOVE ONLY, NO CONTACTS (ALL TAP HOLES)
= CPR STYLE FLAT (ALL TAP HOLES)
F = CPR STYLE FLAT (CLEAR HOLES)
G = CPR STYLE CONTACT GROOVED (CLEAR HOLES)
H = CPR STYLE CONTACT GROOVED (ALL TAP HOLES)
I = CMR (CLEAR HOLES)
J = CMR (ALT/ TAP,/CLEAR HOLES)
K = CMR (ALL TAP HOLES)
L = UG COVER (CLEAR HOLES)
M = UG COVER (ALL TAP HOLES)
N = UG COVER GROOVED (ALL CLEAR HOLES)
O = UG CHOKE (CLEAR HOLES)
P = UG CHOKE (ALL TAP HOLES)
Q = UG COVER GROOVED (ALL TAP HOLES)
R = UBR
S = PBR
T = CBR
U = UDR
V = PDR
W = CDR
X = SPECIAL FLANGES (CUSTOMER TO SPECIFY)

 WR SIZE

FREQ: GHZ

22

33.0 – 50.0

28

26.5 - 40.0

34

22.0 – 33.0

42

18.0 – 26.0

62

12.4 – 18.0

75

10.0 – 15.0

90

8.20 – 12.4

112

7.05 -10.0

137

5.85 -8.20

187

3.95 -5.85

229

3.30 -4.90


SAMPLE P/N: AMC-QD75-N/N-3-B

MODEL
N0:
W/G
SIZE
FLANGE
TYPE
LENGTHMATERIAL
A=Alum.
B=Brass
AMC-QD 75 -N/N- 3 B
