Waveguide Gaskets

Waveguide Gaskets

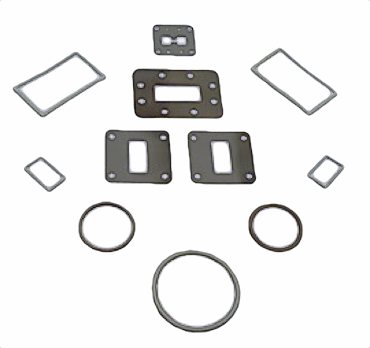

CPR, O-Ring and Flat Style Gaskets

WR SIZEUG STYLE - FIGURE "A" CPR FULL STYLE - FIGURE "B" CPR HALF STYLE - FIGURE "A" FLAT STYLE
28 AMC-OR-28 N/A N/A AMC-GSK-28
34 AMC-OR-34 N/A N/A AMC-GSK-34
42 AMC-OR-42 N/A N/A AMC-GSK-42
62 AMC-OR-62 N/A N/A AMC-GSK-62
75 AMC-OR-75 AMC-CPR-75-F AMC-CPR-75-H AMC-GSK-75
90 AMC-OR-90 AMC-CPR-90-F AMC-CPR-90-H AMC-GSK-90
112 AMC-OR-112 AMC-CPR-112-F AMC-CPR-112-H AMC-GSK-112
137 AMC-OR-137 AMC-CPR-137-F AMC-CPR-137-H AMC-GSK-137
159 AMC-OR-159 AMC-CPR-159-F AMC-CPR-159-H AMC-GSK-159
187 AMC-OR-187 AMC-CPR-187-F AMC-CPR-187-H AMC-GSK-187
229 AMC-OR-229 AMC-CPR-229-F AMC-CPR-229-H AMC-GSK-229
284 AMC-OR-284 AMC-CPR-284-F AMC-CPR-284-H AMC-GSK-284
430 AMC-OR-430 AMC-CPR-430-F AMC-CPR-430-H AMC-GSK-430

Gaskets can be made of either silicone or conductive material. The part number below refers to a full CPR type gasket, 229 WR size, made of silicone.

SAMPLE P/N: AMC-CPR-229-F-S

PREFIXModel
OR = UG ORINGS
CPR = CPR GASKETS
GSK = FLAT CONDUCTIVE
WR SIZE

FULL OR HALF

(when required)

MATERIAL
S=Silicone
C=Conductive

AMC  CPR 229 F S
